When designing a minimalist contemporary carport, nothing ruins the aesthetic faster than a clunky, plastic downspout bolted to the side of a premium structural column. Traditional gutter runs add unwanted visual noise, disrupting the sharp, horizontal lines that define modern luxury estates. The architectural solution is advanced, hidden drainage engineering. By treating the entire roof as a catchment tray and routing rainwater internally through hollow structural profiles, subterranean channels, or knife-edge perimeter slits, the mechanics of water shedding vanish completely from sight. In this design showcase, we break down the first 10 minimalist hidden drainage concepts engineered to keep your vehicle sheltered while maintaining an immaculate, razor-sharp architectural profile.
Internal Structural Column Ducts
These designs completely hide the downspouts by routing water straight through the hollow centers of the primary load-bearing metal pillars or concrete sleeves.

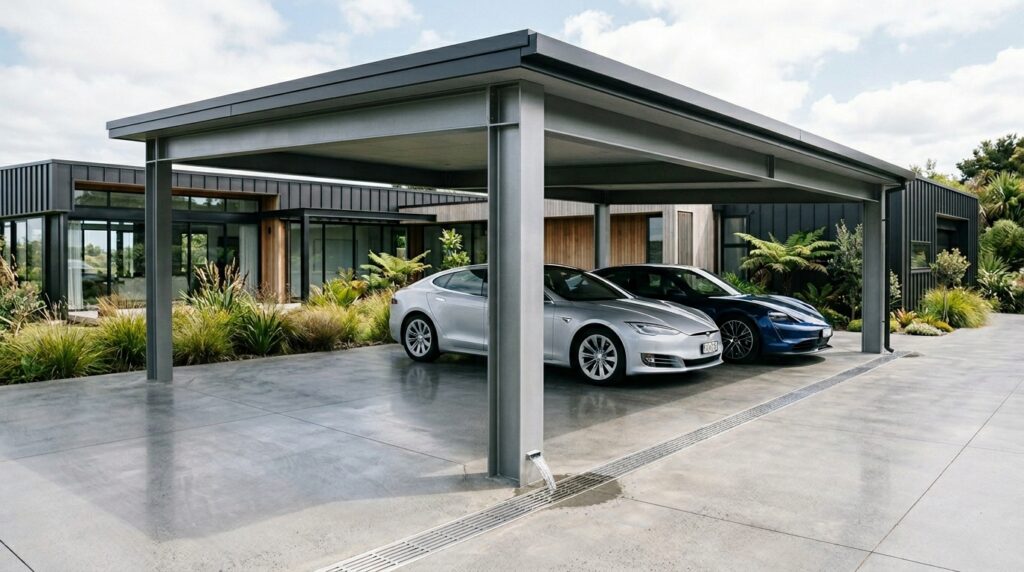

Idea #1 The Matte-Black Hollow I-Beam Conductor
I recommend utilizing custom-milled, heavy-gauge structural steel I-beams where a heavy-duty PVC or copper drainage conduit is welded directly inside the hollow web channel of the pillar before powder coating. The roof deck is sloped at a subtle 1% angle toward the corner joints, allowing heavy rainfall to collect and drop straight down the center of the columns without a single external pipe visible.
Personally, I believe that routing water inside the primary load-bearing steel is the absolute pinnacle of industrial minimalism. It takes a messy, utilitarian necessity and hides it inside the home’s skeletal structure, presenting a flawless geometric frame to arriving guests.
What I would add here is a heavy-duty, debris-catching stainless steel mesh strainer recessed completely flat into the roof collection basin to prevent leaves from entering and clogging the internal column channel.

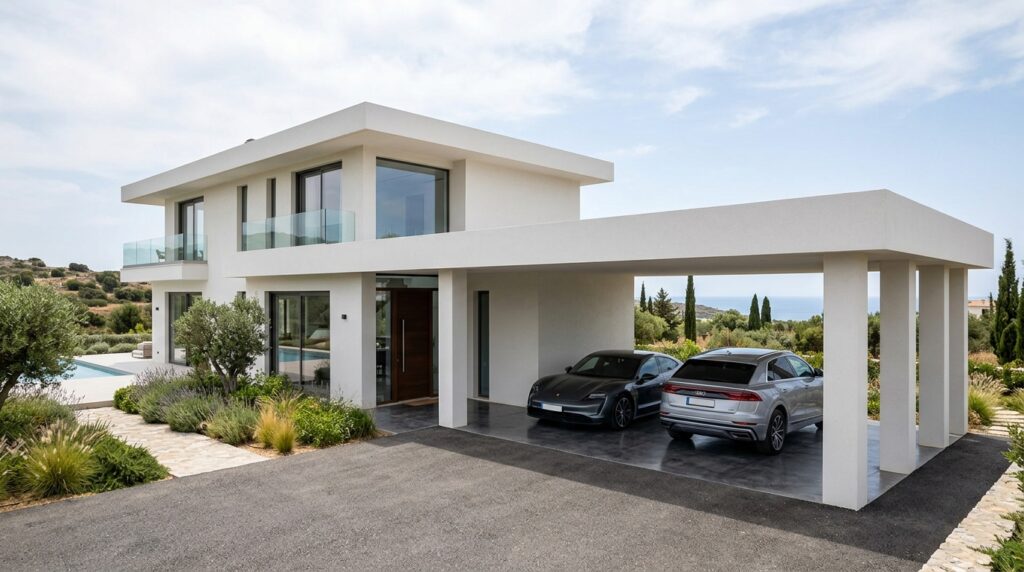

Idea #2 The Cast-In-Place Internal Stucco Sleeve
I typically design these heavy-duty systems by casting architectural concrete pillars around a central 3-inch schedule-40 drainage pipe. The exterior is wrapped in a smooth, multi-coat stucco finish to match the main residence perfectly, while the bottom of the internal pipe ties directly into your property’s underground storm-water grid.
From my perspective, integrating drainage into masonry pillars brings an incredible sense of structural permanence to a driveway. It creates a completely uniform look where the carport looks like an original, monolithic extension of the villa’s primary facade rather than an afterthought.
To refine this layout, I would suggest installing a clean, accessible cleanout plug hidden behind a flush, touch-latch magnetic stucco panel at the base of the pillar for effortless seasonal maintenance.
Knife-Edge Perimeter Slit Catchments
By using a tiny, recessed gap around the edge of the roof canopy, these configurations let water slide off the edges and disappear into hidden vertical trays.

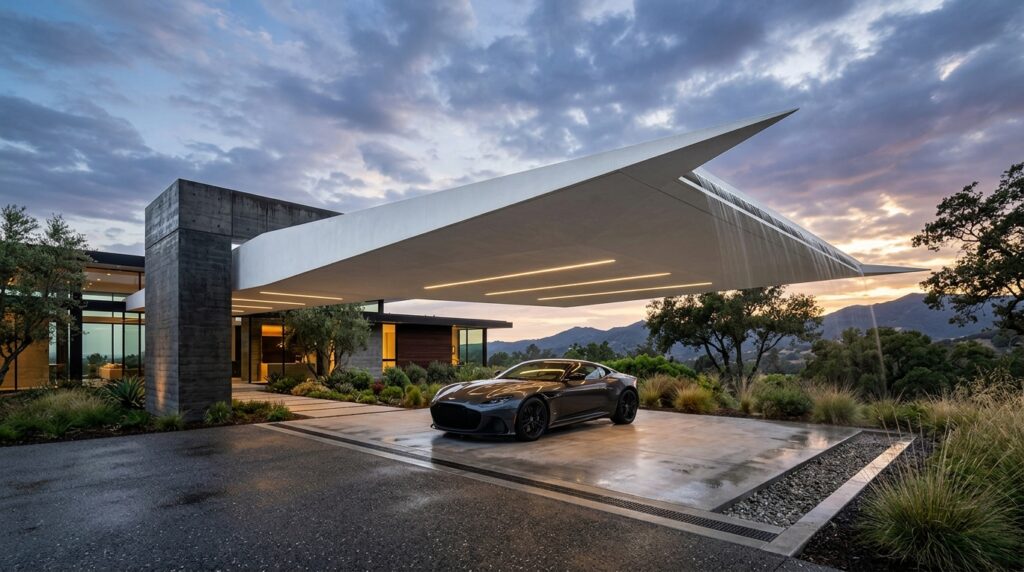

Idea #3 The Cantilevered Knife-Edge Floating Tray
I suggest engineering a double-layered roof deck where the top layer slopes inward to a hidden perimeter tray located just behind a razor-thin, angled fascia board. This creates the illusion of a completely flat, weightless roof plane while safely handling heavy downpours through a concealed internal gutter track.
In my experience, standard boxy gutters look incredibly heavy and dated. A knife-edge perimeter slit strips away that bulk, giving the canopy an aerodynamic, floating silhouette that frames a luxury vehicle with an upscale modern art museum energy.
What I would improve here is treating the inner catchment tray with a high-build, flexible polyurea waterproof membrane coating to guarantee a lifetime of leak-free performance.

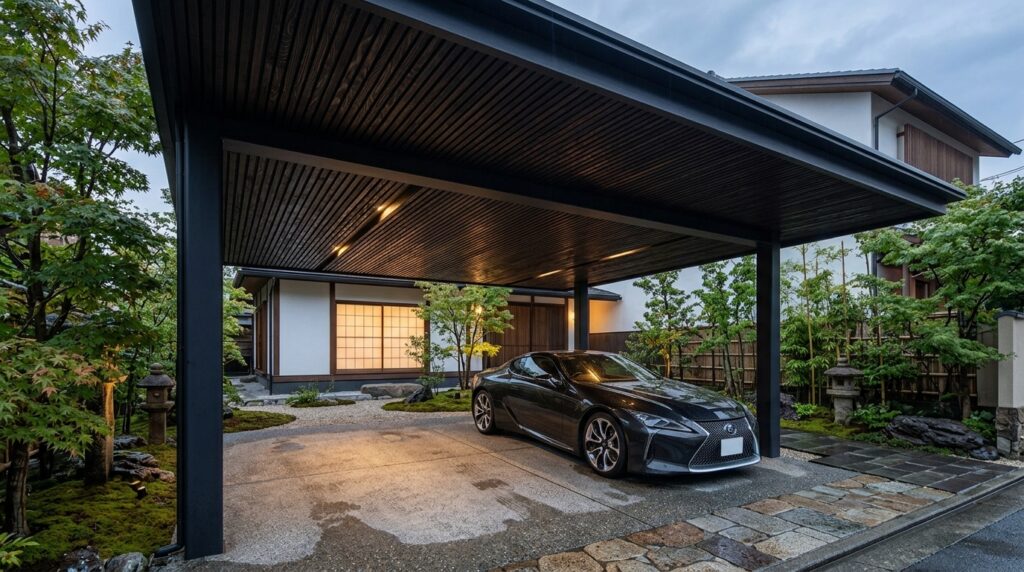

Idea #4 The Shou Sugi Ban Shadow-Line Diverter
I like using a precise horizontal spacing pattern of charred cedar boards (Shou Sugi Ban) for the ceiling, leaving a deliberate 1-inch “shadow line” gap between the wood canopy and the main house wall. This architectural gap houses a concealed black aluminum gutter that catches all roof runoff invisibly.
From my viewpoint, utilizing structural shadow lines to hide water management is brilliant. The velvet-textured carbon-black woodwork brings a striking organic warmth to the driveway, while the hidden gap ensures that water never stains or discolors the premium timber over time.
To finish this design beautifully, I would embed an outdoor-rated, warm-white LED linear light strip inside the shadow-line gap to cast a gorgeous, continuous glow downward across the charred timber texture.
Subterranean Trench & Open-Grate Links
These ideas let rainwater shed naturally off a sloped roof canopy, catching it the exact moment it hits the ground through architectural trench systems.
Idea #5 The Polished Concrete Edge-Drain Pad
I recommend building a perfectly flat roof structure tilted slightly to shed water off the back edge, paired with an architectural stainless steel slot drain embedded flush into the concrete driveway below. The water falls freely from the roof line and is immediately swallowed by the slim 0.5-inch ground grate.
Personally, I think an open ground-catchment system is a game-changer for ultra-minimalist properties. It completely eliminates the need for roof-level gutters and downspouts, allowing the canopy structure to remain incredibly thin, light, and open to the surrounding landscape.
To perfect this setup, I would suggest lining the interior of the ground slot drain with smooth river pebbles to muffle the sound of dripping water during light seasonal rain showers.

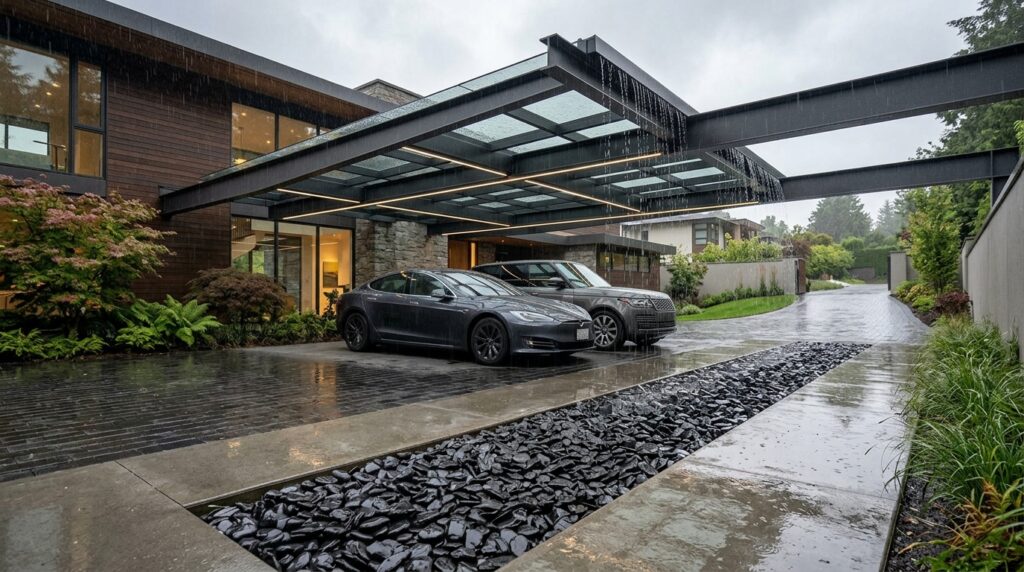

Idea #6 The Floating Cantilever Slate-Trench Bay
I design these systems by utilizing deep subterranean concrete counterweights to support a post-free cantilevered roof tray. The roof features a seamless drip edge that drops all rainwater directly into a matching landscape trench filled with loose, polished black slate stones over a hidden high-volume drain pipe.
From my perspective, this layout effortlessly fuses heavy-duty engineering with natural landscape design. It replaces ugly plastic plumbing with an elegant, textured water feature that absorbs heavy rain impact beautifully without splashing back onto your vehicle’s clean paintwork.
What I would add here is a series of low-profile, waterproof LED uplights nestled inside the slate stone trench to project a dramatic, moving light pattern up onto the underside of the floating canopy roof during rainstorms.
Transparent & Light-Funneling Hidden Drainage
These cutting-edge layouts combine the structural beauty of glass roofs with hidden metal frames, ensuring maximum light transmission and seamless water control.

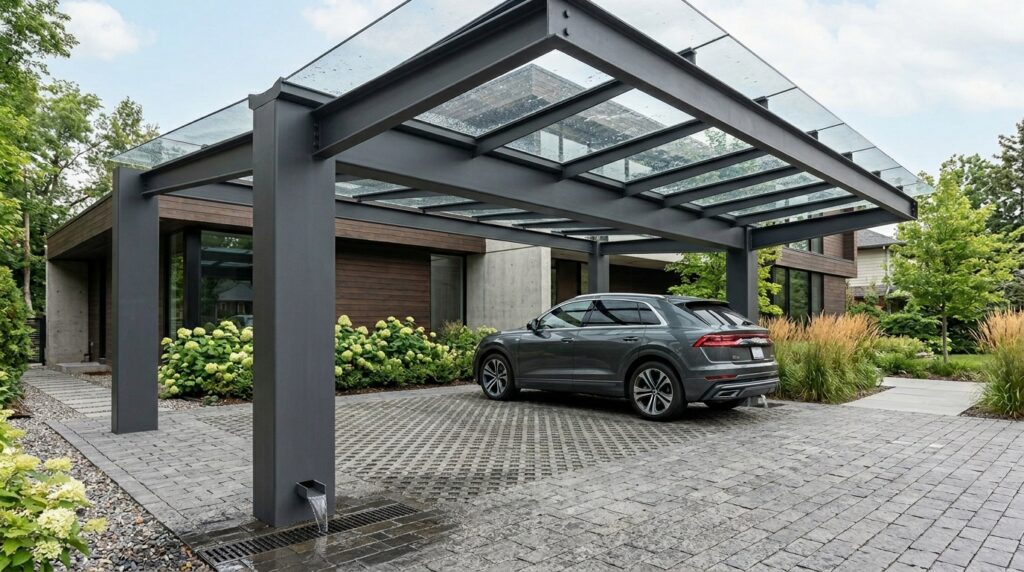

Idea #7 The Structural Spider-Glass Internal Spine
I suggest using heavy-duty laminated safety glass sheets secured by stainless steel spider clamps over a central hollow structural steel spine. The glass panels are pitched slightly toward the center, directing water into a central valley gutter integrated invisibly inside the primary steel structural beam.
In my opinion, an internal-spine glass canopy is the ultimate way to handle dark or narrow driveways. It allows 100% of natural daylight to pass through, keeping the front entrance bright while hiding all the messy plumbing lines inside a sleek, architectural iron skeleton.
To refine this layout, I would apply a specialized hydrophobic nano-coating to the top surface of the glass panels to easily repel dirt and leaves, ensuring your light-funneling canopy stays crystal clear with minimal maintenance.

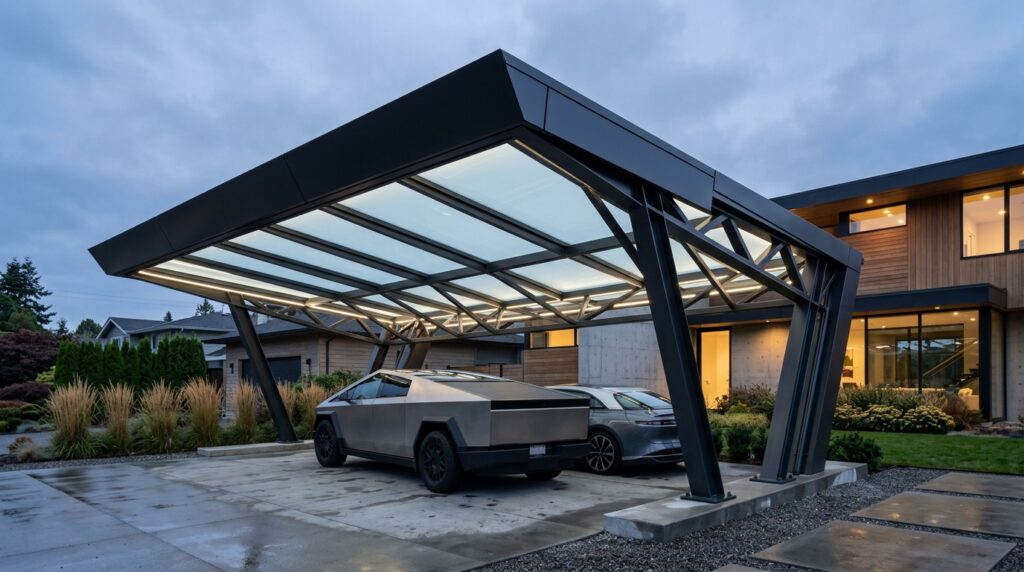

Idea #8 The Frosted Smart-Glass Drainage Wedge
I recommend utilizing a sharp, wedge-shaped frame where the front thick fascia board pulls double duty as a heavy-duty structural beam and a deep, insulated water catchment tray. Using frosted glass panels ensures that the internal gutter components remain completely hidden from views below.
From my viewpoint, avant-garde architecture should be deeply functional yet visually quiet. The frosted glass scatters ambient daylight beautifully across your parking bay while the integrated wedge design ensures that even the heaviest rainstorms are managed quietly and invisibly.
What I would improve here is integrating a smart EV rapid-charging dock cleanly into the interior side of the support frame, utilizing hidden internal wire channels to keep the floor completely clear of messy cords.
Hidden Attached Architectural Ribs
By anchoring the drainage channels directly into your home’s existing secondary walls, these lean-to layouts create a flawless transition that feels like a natural extension of the house.

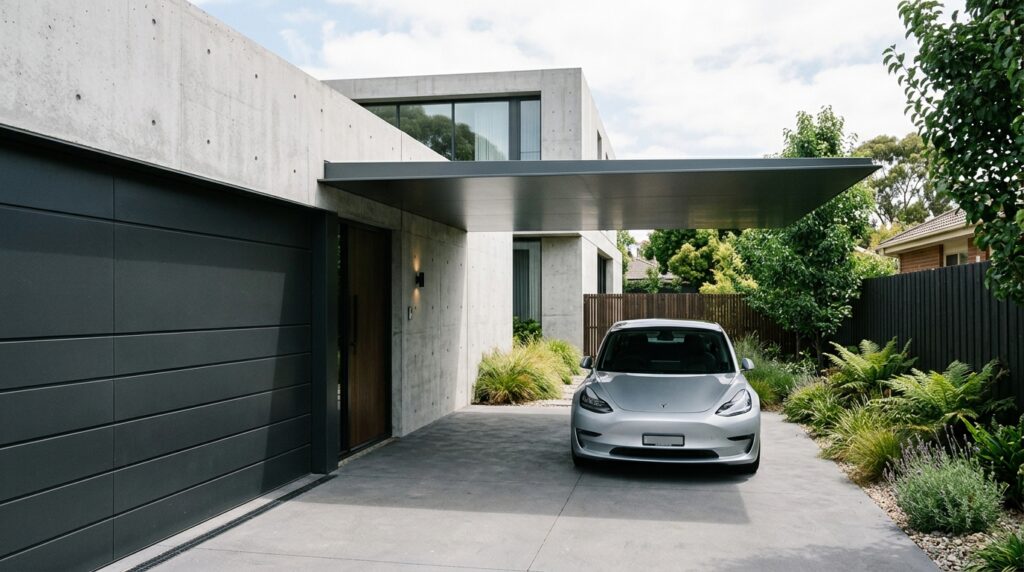

Idea #9 The Flush Wall-Cavitied Lean-To
I recommend engineering an attached lean-to canopy where the primary collection gutter is recessed inside a custom-built architectural wall cavity or rain-screen panel on your home’s exterior facade. This allows rainwater to pass from the carport roof straight into your home’s internal drainage grid.
In my experience, a flush wall-cavity connection is the cleanest way to handle tight, narrow suburban driveways. It completely removes the clunky “add-on” look of traditional carports, fusing the vehicle shelter seamlessly into your home’s main architectural blueprint.
To finish this layout beautifully, I would suggest wrapping the top interface joint with a premium, multi-layered industrial flashing system to guarantee an absolutely airtight, weather-proof seal against the house wall.
Idea #10 The Split-Level Structural Sky-Deck Drain
I like using a split-level multi-functional design where the heavily reinforced carport roof doubles as a premium outdoor living terrace. I install custom walk-on glass panels surrounded by a hidden, recessed perimeter trench grate that catches water from both the terrace floor and the parking pad below.
From my perspective, this layout is the absolute pinnacle of luxury space-saving design. It doubles your usable outdoor footprint, turning a heavy-duty car shelter into a beautiful viewing deck while utilizing internal column pipes to route all stormwater away invisibly.
To complete this setup, I would install an automated, low-profile siphon drainage kit inside the terrace edge channels to quickly pull massive volumes of standing water away during extreme storms, keeping both levels safe and dry.
